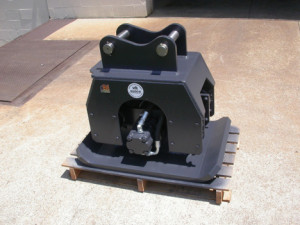

Hudco manufactures hydraulic compactors with standard or custom mountings to fit all sizes of excavators and backhoes. Custom compactor tops are a necessity when using quick attaching bucket mechanisms and custom fitting eliminates the need for additional loose pins and bushings. Hudco compactors are designed and built to be durable, long lasting and to handle all types of construction jobs.
Optional accessories include extended base plates, swivel tops, flow control valves, and complete hydraulic installations. Hudco hydraulic installations are specialized kits that are fitted to your machine and allow for rapid switching for compactor, bucket, hammer, or other attachments.

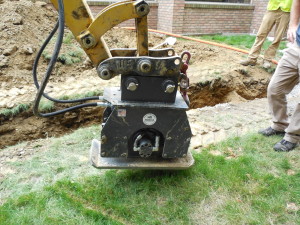

- Compacts soil in trenches, foundations, and on slopes.
- Drives wood, steel sheeting, post, and beams.
- Keeps the crew out of the trench while compacting.
- More productive than hand-held units.
- Custom fit to your excavator.
Specifications
| Specifications | HC12 | HC15 | HC20 | HC30 | HC40 | HC50 |
|---|---|---|---|---|---|---|
| Frequency (cpm) | 2100 | 2100 | 2000 | 2000 | 2000 | 2100 |
| Hydraulic Flow (gpm) | 10 | 13/20 | 20 | 30 | 42 | 55 |
| Pressure (psi) | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 |
| Weight (lbs) | 450 | 750 | 900 | 1600 | 2400 | 2600 |
| Bottom Plate (in) | 12x31 | 16x36 | 24x34 | 29x40 | 34x47 | 34x47 |
| Height (in) | 20 | 30 | 30 | 36 | 50 | 50 |
| Machine Sizing (tons) | 3.5-9 | 3.5-9 | 5-10 | 10-22 | 22-45 | 22-45 |
