HUDCO Manufacturing, est 1980

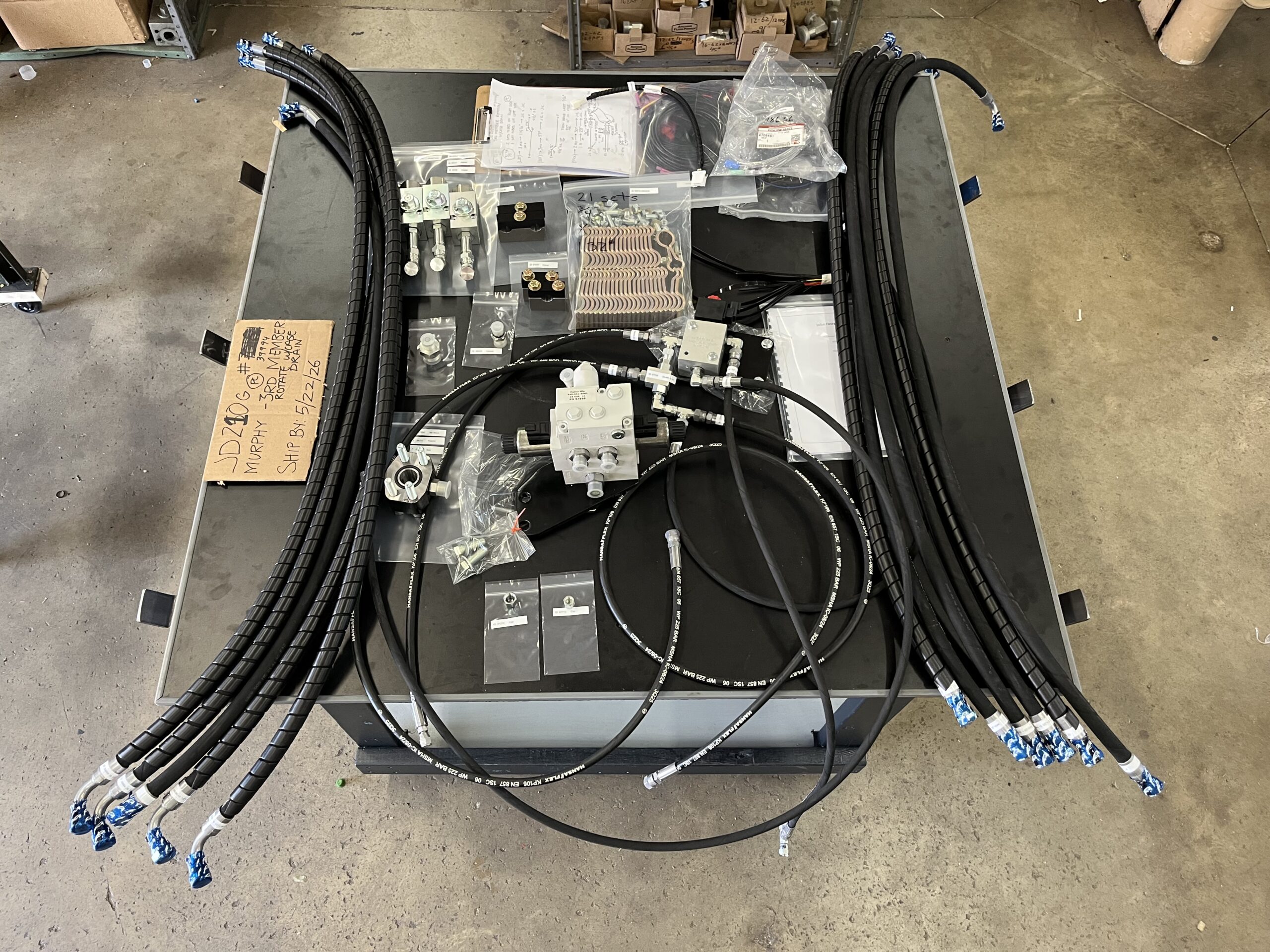

Hydraulic Installation Kits

Hudco manufactures custom hydraulic installation kits for excavator and backhoe attachments. We design the most efficient, cost-effective, and installation-friendly after market hydraulic kits on the market. With over 35 years of designing kits, Hudco has an extensive library of kits to fit almost any machine and attachment combination. Whether you need to run a hammer, thumb, compactor, or rotating shear, Hudco has the kit for you.

Specifications

Specifications ✅ = Standard 🔵 = Optional ❌ = Not Offered

	Hammers/Compactors	Mowers	Thumbs	Shears/Crushers	Rotation	Tilting Buckets	Combination
Tubes & Hoses	❌	✅	✅	✅	✅	✅	✅
Shutoff Valves	✅	✅	🔵	✅	✅	✅	✅
Quick Disconnects	🔵	🔵	🔵	🔵	🔵	🔵	🔵
Pilot Valve	✅	✅	✅	✅	✅	✅	✅
Relief Valve(s)	🔵	🔵	🔵	🔵	🔵	🔵	🔵
Clamps, Fittings, Brackets	✅	✅	✅	✅	✅	✅	✅
ORFS, JIC, Flange	🔵	🔵	🔵	🔵	🔵	🔵	🔵
Return Selector Valve	❌	❌	❌	❌	❌	❌	✅
Hand Controls	❌	❌	🔵	🔵	🔵	🔵	🔵
Foot Controls	✅	✅	❌	❌	❌	✅	🔵
Case Drain Line	❌	🔵	❌	❌	🔵	❌	❌
Proportional Controls	❌	❌	🔵	🔵	🔵	🔵	🔵
Return Line Filters	🔵	❌	❌	❌	❌	❌	❌

Choose the Right Hydraulic Kit

Machine Makes

Doosan
Daewoo
Hitachi
John Deere
Cat
Case
Link-Belt
Ford
Hyundai
Koehring
Komatsu
Samsung
Volvo
Terex
New Holland
Kobelco

Attachment Types

Hammers
Thumbs
Grapples
Augers
Mowers
Compactors
Rotating Shears
Others

1-WAY for Breaker, Hammer, Compactor, Rotary Cutter, Saw

These attachments process oil in one direction, and require low or standard back pressure on the return.

2-WAY for Thumb, Shear, Crusher, Grapple, Processor, Rotation

These attachments process oil in two directions, and require low or standard back pressure on the return.

1- OR 2-WAY

With the addition of special valves we offer kits that are easily converted from 1 or 2 way, allowing your excavator to operate various attachments, for example a shear and a breaker.

SECOND or THIRD MEMBER

A second-member attachment is mounted directly to the boom in place of the stick (arm). A third-member attachment is mounted to the end of the stick, utilizing the machine’s existing boom and stick configuration.
